MIL-M-52372B
NOTES'
1. ALL EDGES TO BE CHAMFERED 1/64 x 45°.
2, LETTERS AND NUMERALS SHALL BE PERMANENTLY INDENTED TO A MAXIMUM
DEPTH OF 1/64 AND SHALL BE ON THE OUTSIDE OF THE MEASURE AND
SHALL BE LIMITED TO 220/0 OF THE PERIPHERY.
3. DIAMETER SHALL BE ROUND WITHIN 1/8.
4.
TOLERANCES ON 3-PLACE DECIMAL + .005; FRACTIONS + 1/64.
5,
FOR INTERPRETATION OF:
DIMENSIONING AND TOLERANCING, SEE ANSI Y14. 5
6.
MATERIAL SHALL BE IN ACCORDANCE WITH ASTM -9209, B210, OR B 221 ;
A L L O Y 3 0 0 3-0, OR 5052-0 .
7. ITEM MAY BE MULTI PIECE CONSTRUCTION,

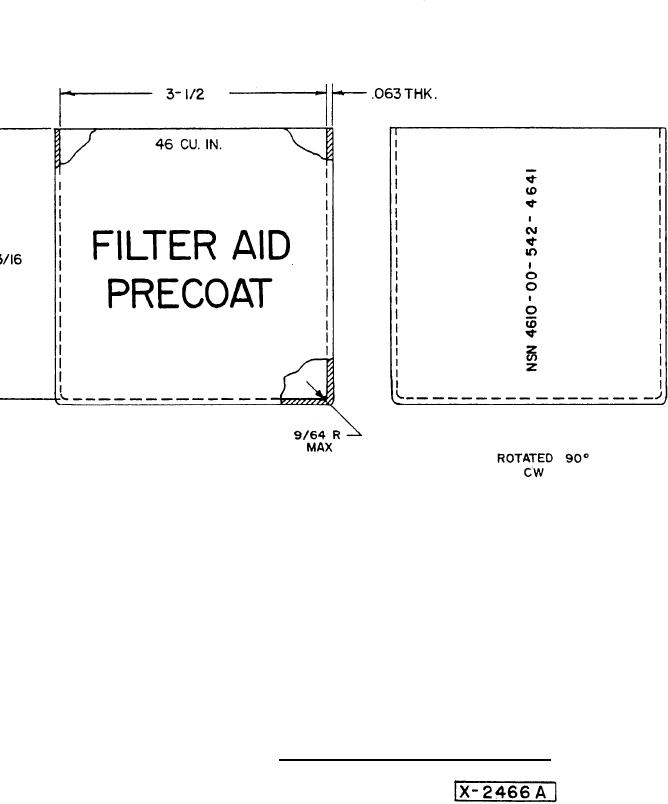

FIGURE 2, Measure filter aid, 46 cu. in.
